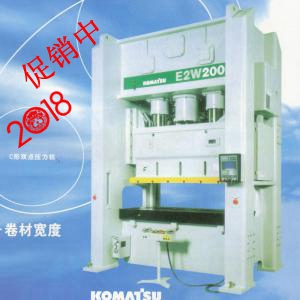

小松機械雙點門型E2W系列
| ? 高剛性機架的順送壓力機 無“開口”現象發生的閉式機架是壓力機加工中的理想結構。然而，由于設備本身價格高，制約了其適用的加工范圍。如果高精度閉式壓力機能夠以合理的價格購進，就能實現加工領域的大幅擴大以及成本的削減。這就是小松的E2W系列。 Solid frame progressive press E2W Seriesa standard model for general use A straight-side avoids deformation and is the ideal frame for presswork However,the price of these presses is higher. If a high accuracy straight-side press could be purchased at a reasonable price,it would greatly expand the press's work range and reduce costs drastically ......and now the Komatsu E2W will perform. | |
 | ? 寬廣的加工范圍 E2W不僅適用原來C形雙點壓力機的加工范圍，并可完成原來只有傳統閉式壓力機才能實現的高負荷、高精度的寬廣的加工領域。 E2W Series features a wide presswork range The E2W press offers not only the conventional C-type two-point range but also applies to wide range including heavy-load,high-precision presswork equivalent to straight side press. |
| ? 降低生產成本的關鍵 壓力機開口現象是導致模具壽命惡化的根本原因。不存在開口現象的小松閉式壓力機E2W，能使模具修補費用削減50％。并且，E2W精度穩定，可實現高精度加工，致使產品的檢查費用也大幅減少。 The E2W is the key to cost saving Deformation is the main cause of shortening die life.The E2W solid frame press eliminates deformation,and will reduce die maintenance costs about 50%.E2W provides stable precisioneven in presswork,leading to high press performance.Product inspection costs will be much saved. |  |

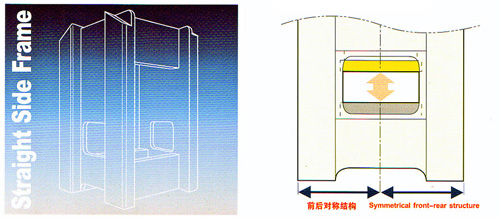

? 高剛性一體結構 ? 前后對稱結構 | |
| |
? 高性能濕式離合器、制動器 | |
| ? 高精度導軌機構 通過高剛性偏心輪結構，使橫向推力被預置導軌吸收，加之采用了 長6面契槽導軌，可保持長期的高精度。 The mechanism that ensures high precision The power shaft has a high quality eccentric drum with high torsional rigidity.Thrust load from eccentric motion is absorbed by the plunger guide.Besides,in combination with the long 6-point gibs,keeps accuracy for a long time.Die life is also greatly extended. | |
? 獨特機架結構節省空間 由于采用緊湊的機架結構，安裝面積與傳統的C形機架壓 力機相比，僅需原來的80％。另外，由于后方的裝模性有 很大的改善，從而提高了作業性。 The original Komatsu frame structure requires less space Due the adoption of a compact frame structure,20% of installation space is reduced,compared to conventional C-frame presses.Access to die area improver. | |
*以上規格僅供參考，以實際出廠產品為準。各系列詳細配置與價格請與客服人員進行咨詢。
